Home > Products > GPS Products >Solar Bluetooth GPS Receiver |
|
|
|
|
|
|
|
| Bluetooth GPS Receiver |
 |
| |
|
GM-Q795 |
|
|
|
|
 |
GPS Mouse Receiver |
 |

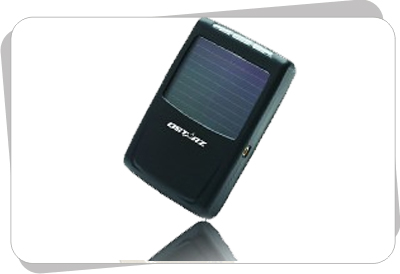

Mini Solar SiRF Star III Bluetooth GPS Receiver
SiRF Star III Powered |
| |
 |
|
|
 |
| |
.- Adopt SiRF Star III chipset.
- 20-Channel GPS Receiver for fast acquisition and reacquisition
- Smallest Solar BT GPS Receiver with SiRF Star III
- Fast Position Fix ,Cold start<41s,Hot start<1s
- Vehicle tracking & Location base services
- Capable of operating indoors and tracking signals down to -159dBm
- 200,000+ effective correlations for fast TTFF
- Dual Power Supply - Built in rechargeable Lithium ion battery & Solar power
-Compatible with Bluetooth Serial Port Profile (SPP) in 10m wirelessly |
|
|
| |
 |
| |
| Protocol |
NMEA 0183 (Default:GGA,GSA,GSV,RMC,VTG) |
| Baud Rate |
9600,N,8,1(Default) |
| Datum |
WGS84 |
| Channel |
20 channel all-in-view tracking |
| Frequency |
L1, 1575.42MHz |
| Hot Start |
1 sec. Average |
| Warm Start |
<37 sec. Average |
| Cold Start |
41 sec. Average |
| Reacquisition Time |
0.1 sec. Average |
| Position Accuracy |
10 meters, 2D RMS,7 meters 2D RMS, WAAS corrected |
| Sensitivity |
-159dBm |
| Power Supply |
DC 5V |
| Power consumption |
75mA(avg.) |
| Battery Life |
12HRs with Li-Ion Battery, 15HRs when working with Solar Battery |
| Antenna Type |
Built-in Ceramic patch antenna |
| External Antenna Interface |
MMCX |
| Bluetooth |
Class 2, distance up to 10 meters |
| Dimension |
52(W)x82(L)x21(H) mm |
| LED Indicator |
Red LED : GPS is fixed or not fix / Power ON |
| Operating Temperature |
-10°C to + 70°C |
| Storage Temperature |
-40°C to + 85°C |
| Operation Humidity |
5%~95%, Non-Condensing |
|
|
|
|
|
