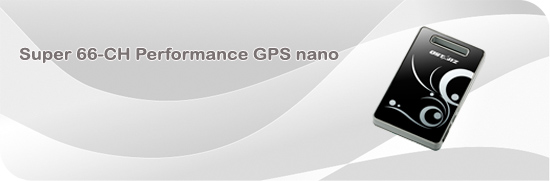

• Super High 66-Channel tracking for fast acquisition and reacquisition
• Super high sensitivity -165dBm adopting the latest MTK chipset
• Lower power consumption up to 12hrs navigation time
• Slim, Thin, Li ght, and Stylish design, only 62L x 38W x 7H (mm)
• Capable of Assisted GPS: download almanac data to realize fastest TTFF and positioning
• G-Mouse + Bluetooth in one: wired and wireless GPS receiver
• One touch switch to 5Hz update rate for higher accuracy of the demand of eXtreme Sport
• Fast Position Fix ,Cold start 35s, Warm start 33s,Hot start 1s
• Personal/Portable Navigation (PDA, Smartphone, PC, etc.)
• QZSS, DGPS(WAAS+EGNOS+MSAS) support
• Auto On-Off function for smart power control
|
|
| General |
Accuracy (none DGPS) |
| GPS Chip |
MTK GPS Module |
Position |
| Frequency |
L1, 1575.42MHz |
Without aid: 3.0m 2D-RMS<3m CEP(50%) without SA(horizontal)DGPS (WAAS, EGNOS, MSAS): 2.5m |
| C/A Code |
1.023MHz chip rate |
Velocity |
Without aid: 0.1m/s, DGPS(WAAS, EGNOS, MSAS): 0.05m/s |
| Channels |
Super High 66 CH tracking |
Time |
50 ns RMS |
| Antenna (Intemal) |
Built-in patch antenna with LNA |
Datum |
WGS-84 |
| Sensitivity |
Dynamic Conditions |
| Tracking -165 dBm |
Altitude |
<18,000m |
| Acquisition Rate |
Velocity |
<515m/sec |
| Cold Start |
35 sec, average |
Acceleration |
<4g |
| Warm Start |
33 sec, average |
Update |
1Hz as default |
| Hot Start |
1 sec, average |
Interface |
| Reacquisition |
< 1 sec. |
Bluetooth |
V1.2 compliant (SPP profile) |
| Power |
Class 2 (15 meters in open space) |
| Built-in rechargeable Li-ion battery |
Frequency: 2.4~2.4835 GHz |
| Input Voltage |
Vin: DC 3.0-5.0V |
Power On/Off |
Slide switch |
| Backup Voltage |
DC 1.2 ± 10% |
Power Charge |
Mini USB |
| Charging time |
1hrs. (Typical) |
GPS Protocol |
| NMEA-0183 (V3.01) – GGA, GSA,GSV, RMC(default); VTG, GLL(Optional), Baud rate 115200 bps, Data bit : 8, stop bit : 1(Default) |
| Environmental |
| Operating Temperature |
- 10 ℃ to + 60 ℃ |
| Storage Temperature |
- 20 ℃ to + 60 ℃ |
| Charging |
0 ℃ to + 45 ℃ |
Device Size |
| Accessories |
62 (L) X 38 (W) X 7 (H) mm / 22g |
| Car Charger |
USB Cable (Optional) |
LED function |
Manual |
Driver CD (Optional) |
Bluetooth connection, Navigation Status, and Battery/charger status |
Quick Guide (Optional) |
|
|
|
|
|
|
|
|
|
|
|
|
|
